BSD660

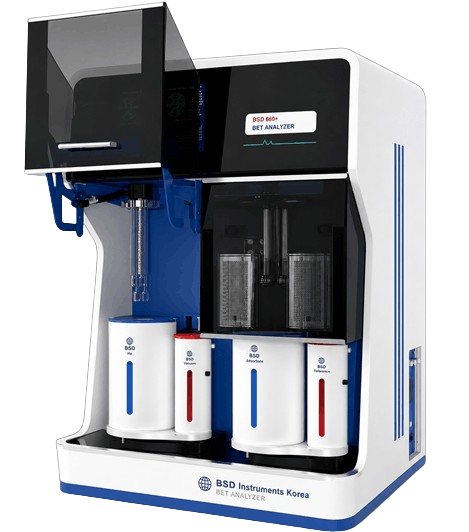

The BSD660 is a high-performance surface area and porosity analysis system designed for advanced material characterization in research, quality control, and industrial applications. It is widely used in fields such as catalysis, energy storage, chemicals, pharmaceuticals, metallurgy, and academic research, delivering fast, precise, and repeatable results for high-throughput analysis.

Built for accuracy and stability, the BSD660 features independent high-precision pressure transducers for each analytical station, P₀ station, and calibrated volume, delivering measurement reproducibility of <0.5% RSD based on BET standards. Its advanced high-vacuum system, combining mechanical and molecular pumps, achieves vacuum levels as low as 10⁻⁸ Pa, ensuring reliable performance across a wide testing range of >0.0005 m²/g surface area and 0.35 nm to 500 nm pore size during continuous operation.

Description

The BSD660 is a high-performance surface area and porosity analysis system designed for advanced material characterization in research, quality control, and industrial applications. It is widely used in fields such as catalysis, energy storage, chemicals, pharmaceuticals, metallurgy, and academic research, delivering fast, precise, and repeatable results for high-throughput analysis.

Ideal for rapid elemental analysis across minerals, metals, polymers, and research applications.

Engineered for accurate specific surface area, pore volume, and micro- to ultra-micropore size distribution analysis, the BSD660 supports a wide range of gas adsorption isotherms, including inert and combustible gases such as N₂, O₂, Ar, CO, CO₂, H₂, CH₄, and C₂H₆. Its broad testing range enables detailed characterization from ultra-low surface areas to complex mesoporous structures.

Equipped with independent high-precision pressure transducers for each analytical station, P₀ station, and calibrated volume, the BSD660 ensures measurement accuracy with less than 0.5% RSD based on BET standards. An advanced high-vacuum system, combining mechanical and molecular pumps, achieves vacuum levels down to 10⁻⁸ Pa, providing superior data reliability and system stability during continuous operation.

HIGH PRECISION ANALYSIS

Independent pressure transducers deliver accurate, repeatable results

WIDE ANALYTICAL RANGE

Measures ultra-low surface areas and wide pore size distributions

VERSATILE GAS COMPATIBILITY

Supports inert and combustible gas adsorption analysis.

STABLE & SAFE OPERATION

Advanced vacuum system ensures stable, reliable performance.

ANY QUERY, CLICK HERE !
Application Uses
  • High-throughput and Fast Specific Surface Area Analysis;
  • Pore Volume and Meso-, Micro-, Ultra Micro-pore Size Distribution Analysis;
  • Gas Adsorption Isotherm (E.g. N2, O2, Ar, CO, CO2);
  • Combustible Gas Adsorption Isotherm (E.g. H2, CH4, C2H6).
Application features
  • Test Range: > 0.0005m2/g for specific surface area; 0.35nm - 500nm for pore size;
  • High Accuracy: < 0.5% RSD (BET value of standard Sample as reference);
  • Pressure Transducer: Transducers are equipped for each analytic station, P0 station and calibrated volume respectively, which work independently with precision at 0.15%;
  • Vaccum System: 10-2 Pa with mechanical pump; 10-8 Pa with molecular pump.
